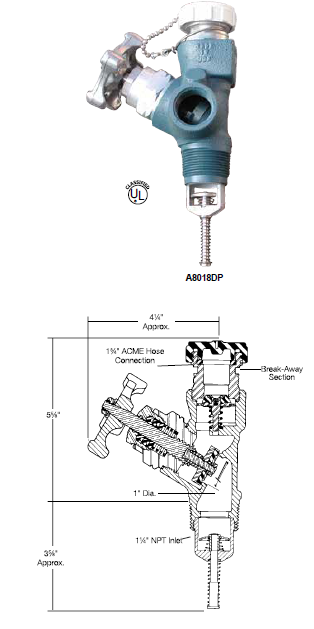

Multipurpose Valve for Filling and Liquid Transfer of NH3 Containers
Info
Designed primarily for use as a combination filler and liquid withdrawal
valve on three-opening applicator tanks or on nurse tanks.
This valve incorporates an integral excess flow valve. When product
is required, the valve must be completely open and backseated to
allow the excess flow valve to function properly as explained in the
excess flow valve section of this catalog.
| Part Number | Inlet Connection (M. NPT) |
Outlet Connection (F. NPT) |
Filling Connection (M.ACME) |
Filling Capacity At 20 PSIG Pressure Drop GPM/NH3 |
Approximate Excess Flow Liquid Closing Flow GPM/NH3 |
Accessories | |
| Hydrostatic Relief Valve |
Vent Valve | ||||||
| TA7894P | 1¼” | 1" | 1¾” | 74 | 50 | SS8001J | TSS3169 |
*Determined at 9 to 12 PSIG differential.
