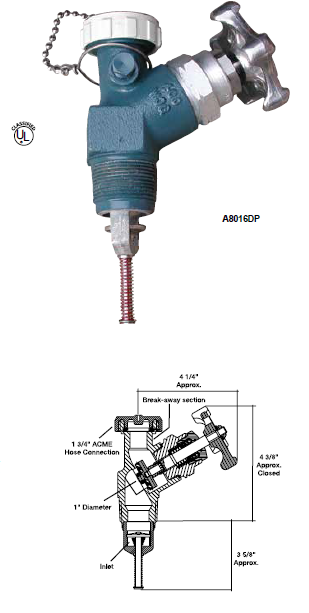

Multipurpose Valve for Filling of NH3 Containers
Info
Designed specifically for use as a manual valve or vapor equalizing
valve on anhydrous ammonia applicator and nurse tanks.
This valve incorporates an integral excess flow valve. When product
is required, the valve must completely open and backseated to allow
the excess flow valve to function properly as explained in the excess
flow section of this catalog.
| Part Number | Inlet Connection (M. NPT) |
Filling Connection (M. ACME) |
Filling Capacity At 20 PSIG Pressure Drop GPM/NH3 |
Approximate Excess Flow Closing Flows | Accessories | ||
| Liquid* GPM/NH3 | Vapor** CFH/NH3 |
Hydrostatic Relief Valve |
Vent Valve | ||||
| A8016DP | 1¼” | 1¾” | 112 | 44 | 24,000 | SS8001J | TSS3169 |
* Determined at 9.5 to 12 PSIG differential.
* * Determined at 100 PSIG inlet.
