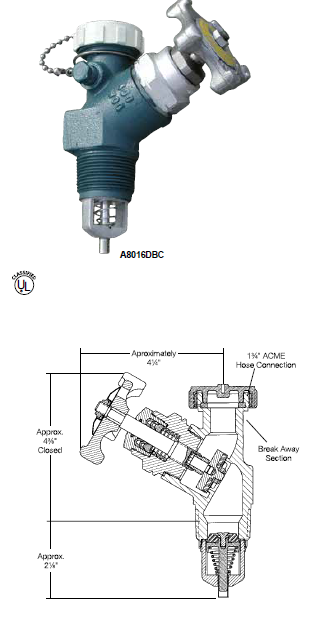

Multipurpose Valve for Filling of NH3 Containers
Info
Designed specifically for use as a manual filler valve on anhydrous
ammonia applicator tanks. This valve incorporates an integral back
check valve.
| Part Number | Inlet Connection | Filling Connection | Filling Capacity at 20 PSIG Pressure Drop GPM/NH3 |
Accessories | |
| Hydrostatic Relief Valve |
Vent Valve | ||||
| A8016DBC | 1 1/4” | 1 3/4” | 95 | SS8001J | TSS3169 |
* Determined at 9.5 to 12 PSIG differential.
* * Determined at 100 PSIG inlet.
