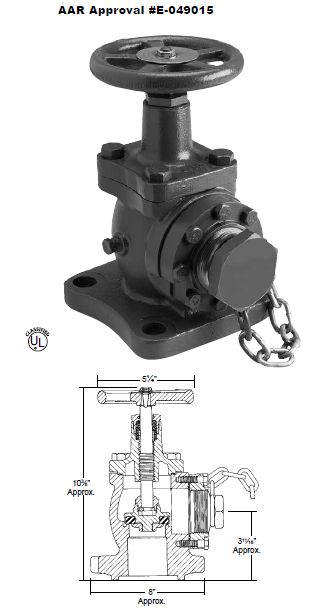

Tank Car Angle Valves for Railroad Tank Cars
Info
Designed especially for transfer of LP-Gas and anhydrous ammonia
in railroad tank car service.
The combined heavyweight ductile iron castings and precision
machining provide ruggedness and superior performance in working
pressures up to 400 PSIG.
| Part Number | Inlet Connection | Outlet Connection (F.NPT) |
Flow At 1 PSIG (Cv) Pressure Drop |
Accessories | |
| Hydrostatic Relief Valve |
Vent Valve | ||||
| TA7894P | Tank Car Flange | 2" | 112 | SS8001U | TSS3169 |
* To obtain approximate flow at other than 1 PSIG pressure drop, multiply flow in table by square root ofpressure drop. For NH3 flow, multiply propane flow by .90.
