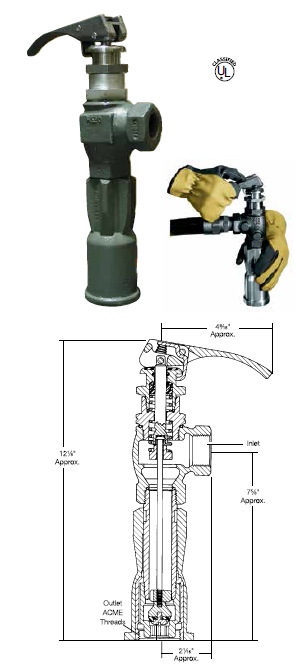

Quick-Acting Minimum Loss Hose-End Valves for Bobtail Delivery Trucks
and Dispensing Stations
Info
Designed to vastly reduce the amount of product vented when
disconnecting bobtail delivery trucks, dispensing systems and
anhydrous ammonia nurse tanks.
These valves provide instant, full-on flow at the flip of a handle. Shutoff
is instant and the handle locks for added protection. This “top of
the line” hose-end valve is a fully contained unit that does not require
additional filling adapters or connectors.
| Part Number | Inlet Connection (F. NPT) | Outlet Connection (F. ACME) | Locking Handle |
Flow at 1 PSIG (Cv) Pressure Drop* (GPM/Propane) |
| A7793A | ¾” | 1¾” | Yes | 16.0 |
| A7797A | 1" | 1¾” | Yes | 16.0 |
* To obtain approximate flow at other than 1 PSIG pressure drop, multiply flow in table by square root of pressure drop. Example: A7797 @ 9 PSIG = 16.0 x 9 = 48.0 GPM/propane. For NH3 flow, multiply propane flow by .90.
