External “Pop-Action” Supplementary Pressure Relief Valves for Small ASME Containers and DOT Cylinders
Info
Designed for use as a supplementary relief valve on small ASME
above ground and underground containers. They may also be used
as a primary or secondary relief device on DOT cylinders, or as
hydrostatic relief valves.
All working components of these relief valves are outside the
container connection, so the valves must be protected from physical
damage.

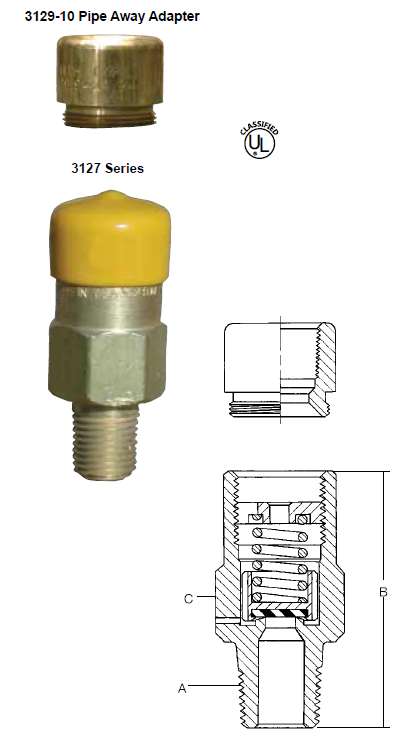

| Part Number | Container Type |
Start To Discharge Setting PSIG |
A Container Connection M. NPT |
B Overall Height (Approx.) |
C Wrench Hex Section |
Flow Capacity SCFM/ Air |
Suitable for Tanks w/Surface Area Up To:* |
Accessories | |||
| UL (At 120% of Set Pressure) |
REGO® Rated at 480 PSIG*** |
Protective Cap |
Pipeaway Adapter | ||||||||
| Part Number | Outlet Size | ||||||||||
| 3127G | ASME | 250 | ¼” | 1 31/32" | ⅞” | 295 | - | - | 7545-40 | - | |
| 3129G | ½” | 2 19/31" | 1⅛” | 465 | 3129-10 | ½” F. NPT | |||||
| 3127K | DOT | 375 | ¼” | 1 31/32" | ⅞” | - | 450 | 100 lbs./Propane | - | ||
| 3129K | ½” | 2 19/31" | 1⅛” | 780 | 200 lbs./Propane | 3129-10 | ½” F. NPT | ||||
* Flow rates shown are for bare relief valves. Adapters and pipeaways will reduce flow as discussed in forewording information.
** Not UL or ASME rated. REGO® rated at 480 PSIG.
*** Meets DOT requirements.
