Fully Internal “Pop-Action” Pressure Relief Valves for Transports and Delivery Trucks
Info
Designed specifically for use as a primary relief valve in ASME
transports and delivery trucks with 2” and 3” NPT couplings.
| Part Number | Start To Discharge Setting PSIG |

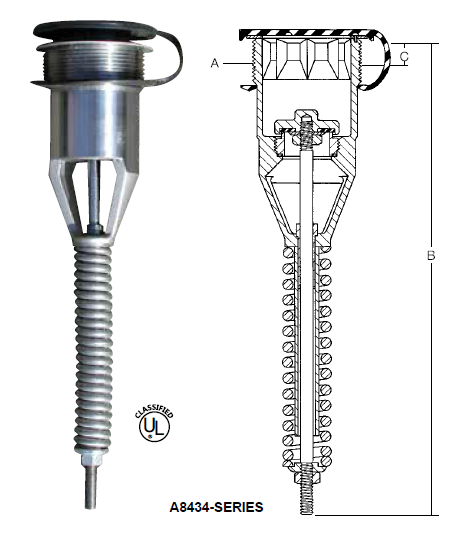

AContainer Connection |
B Overall Height (Approx.) |
C Height Above Coupling (Approx.) |
UL (At 120% of Set Pressure) |
ASME (At 120% of Set Pressure) |
Suitable for Tanks with Surface Area Up To:* |
Protective Cap (Included) |
| A8434N | 265 | 2” M. NPT | 9 1/16” | ½” | 3700 | 3659 | 175 Sq. Ft | A8434-11B |
| A8434G | 250 | 3456 | ||||||
| A8436N | 265 | 3” M. NPT | 17 ⅞” | ¾” | 10210 | 9839 | 602 Sq. Ft. | A8436-11B |
| A8436G | 250 | 9598 |
* Per NFPA Pamphlet #58, Appendix D. Area shown is for UL or ASME flow rating—whichever is larger.
