ASME Multivalves® for Vapor Withdrawal
Info
These compact Multivalves® are especially suited for vapor
withdrawal of ASME containers where compact groupings of
components are necessary. Separate filler valves and pressure relief
valves are required.
| Part Number | Container Connection |
Service Connection |
Vapor Equalization Connection | Fixed Liquid Level Vent Valve | Dip Tube Length | |
| Connection Size | UL Listed Closing Flow | |||||

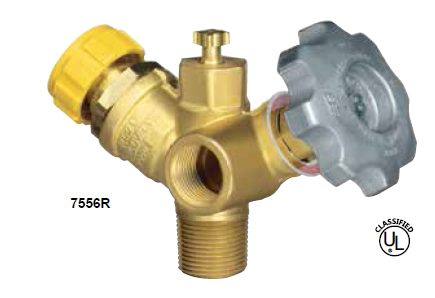

| 7556R12.0 | ¾” M. NGT | F. POL (CGA 510) |
1¼” M. ACME | 4200 CFH @ 100 PSIG | Yes | 12”** |
* Since these Multivalves® have no integral pressure relief valves, they can be used on any ASME container with an independant
relief device sufficent for that tank’s capacity.
** Other tube lengths available.
