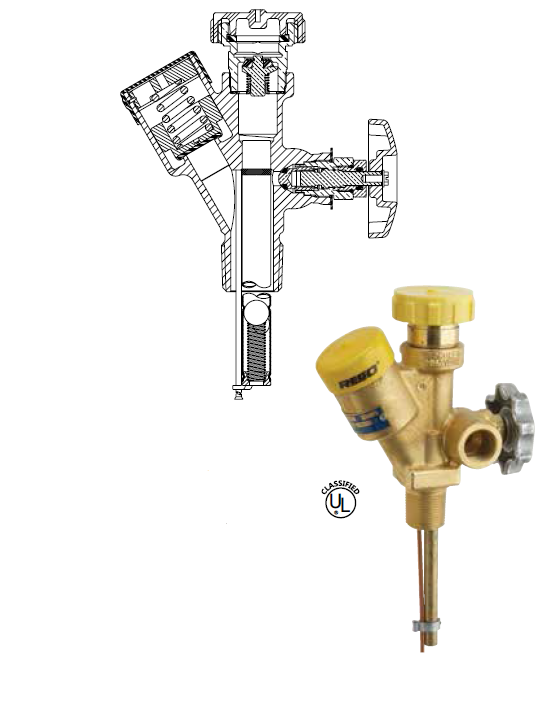

DOT and ASME Multivalves® for Vapor Withdrawal
Info
These Multivalves® permit vapor withdrawal from ASME containers
up to 50 sq. ft. surface area and DOT containers up to 420 lbs.
propane capacity. They allow on-site cylinder filling without interrupting
gas service.
|
Part Number |
Bonnet Style |
Application |
Container Connection |
Service Connection |
Filling Connection |
Fixed Liquid Level Vent Valve Style |
Dip Tube Length with Deflector |
Pressure Relief Valve Setting |
For Use In Cylinders w/PropaneCapacity Up To:** |
For Use In |
| 6532A12.0 | Standard | ASME* | ¾” M. NGT | F. POL (CGA 510) |
1¾” M. ACME |
Knurled | 12.0” | 250 PSIG |
- | 43 sq. ft. |
| 6532R12.0 | MultiBonnet | |||||||||
| 6542A12.0 | Standard | 1” M. NGT | 53 sq ft. | |||||||
| 6542R12.0 | MultiBonnet | |||||||||
| 6533A10.5 | Standard | DOT | ¾” M. NGT | 10.5” | 375 PSIG |
420 lbs. Propane |
- | |||
| 6533R10.5 | MultiBonnet | |||||||||
| 6533A11.7 | Standard | 11.7" | ||||||||
| 6533R11.7 | MultiBonnet | |||||||||
| 6533R11.7 | Standard | 1” M. NGT | 11.1" | |||||||
| 6543R11.1 | MultiBonnet | |||||||||
| 6543A11.7 | Standard | 11.7" | ||||||||
| 6543R11.7 | MultiBonnet |
* UL rated flow capacities are: 6532A12.0-1180 SCFM/air, 6542A12.0-1530 SCFM/air.
** Per CGA Pamphlet S-1.1.
*** From NFPA, Appendix D.
