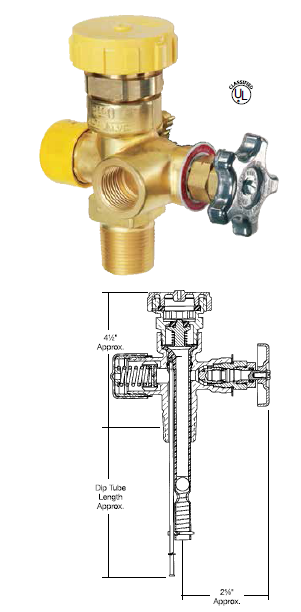

DOT Multivalves® for Vapor Withdrawal
Info
These Multivalves® permit vapor withdrawal. They allow for container
filling without interrupting gas service.
The 6555R Series is designed for ASME containers with up to 25 ft²
surface area or 60 gallons water capacity.
The 8555D and 8555R Series are designed for DOT cylinders with up
to 200 lbs. propane capacity.
| Part Number |
Bonnet Style | Application | For Use In Containers with Size Up To: |
Dip Tube Length w/Deflector |
Container Connection |
Service Connection |
Filling Connection |
Fixed Liquid Level Vent Valve |
Pressure Relief Valve | ||
| Setting | Flow Capacity* | ||||||||||
| UL Listing | ASME | ||||||||||
| 6555R10.6 | MultiBonnet | ASME Containers |
25 ft^2 surface area or 60 gallons water capacity |
10.6” | ¾” M. NGT |
F. POL (CGA 510) |
1¾” M. ACME |
Yes | 250 PSIG |
793 SCFM, air |
700 SCFM, air |
| 6555R11.6 | MultiBonnet | 11.6” | |||||||||
| 6555R12.0 | MultiBonnet | 12.0” | |||||||||
| 8555D10.6 | Standard | DOT Cylinders |
200 lbs. Propane ** |
10.6” | 375 PSIG |
n/a | n/a | ||||
| 8555R10.6 | MultiBonnet | ||||||||||
| 8555D11.6 | Standard | 11.6” | |||||||||
| 8555R11.6 | MultiBonnet | ||||||||||
* Per CGA Pamphlet S-1.1.
