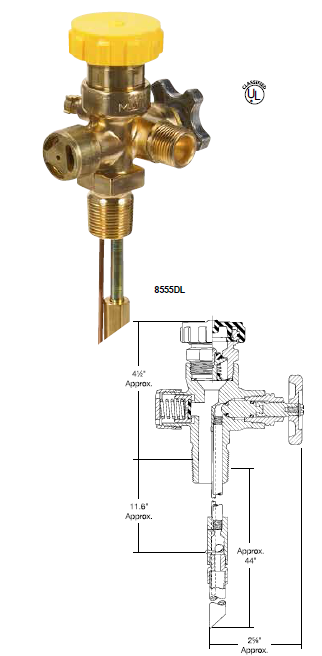

DOT Multivalve® for Liquid Withdrawal
Info
These Multivalves® permit liquid withdrawal from DOT cylinders with
up to 100 lbs. propane capacity. They eliminate unnecessary cylinder
handling when servicing high volume loads and allow on-site filling
into the vapor space without interrupting gas service.
| Part Number | Container Connection |
Service Connection |
Filling Connection |
Fixed Liquid Level Vent Valve Style |
Dip Tube Length w/ Deflector |
Liquid Withdrawal Tube Length |
Pressure Relief Valve Setting |
For Use In Cylinders w/Propane Capacity Up To: |
Liquid Closing Flow (LP-Gas)*** |
| 8555DL11.6 | ¾” M. NGT | CGA 555* | 1¾” M. ACME | Knurled | 11.6” | 44” | 375 PSIG |
100 lbs.** | 1.7 GPM |
* Use adapter 12982 to connect to pipe threads.
** Per CGA Pamphlet S-1.1.
*** To ensure proper functioning and maximum protection from integral excess flow valves, the cylinder valve should be fully opened and backseated when in use.
