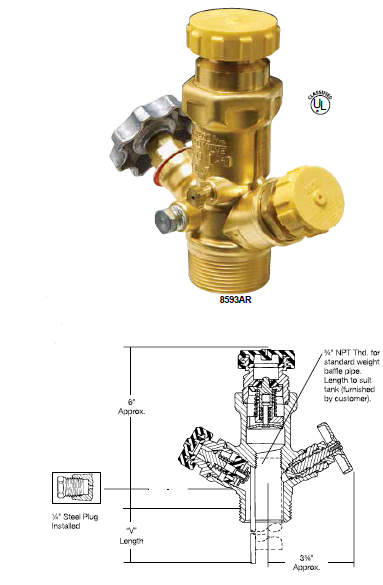

8593AR

ASME Multivalves® for Vapor Withdrawal


Info

These Multivalves® provide vapor withdrawal and filling of ASME
containers. A separate pressure relief valve is required in addition to
this valve. The MultiBonnet® is standard on this valve.























Part
Number





Container
Connection





Service
Connection





Filling
Connection

 Vapor Equalizing Connection



Fixed Liquid
Level Vent
Valve Style





Dip
Tube
Length





For Use In Containers w/ Surface Area Up To:



Connection Size

 UL Listed Closing Flow
8593AR16.0 1½”
M. NPT		 F. POL
(CGA 510)		 1¼”
M. ACME		 1¼”
M. ACME		 4200 CFH at 100 PSIG Knurled 16"* **













* Dip tube not installed, may be cut by customer to desired length.
** Since these Multivalves® have no integral pressure relief valves, they can be used on any ASME container with an independent relief device sufficient for that tank’s capacity.
