Service Valves for DOT Fork Lift Containers
Info
Designed specifically for vapor or liquid withdrawal service on DOT
fork lift containers. Valves with 1.5 GPM closing flow are for use in
small and medium size lift truck applications, while those with 2.6
GPM closing flow are for large lift trucks. Since none of these valves
have an integral pressure relief valve, they may only be used as an
accessory valve on containers that have an independent pressure
relief valve sufficient for that cylinders capacity.
The integral excess flow valve found in all these service valves helps
prevent excessive product loss in the event of fuel line rupture.

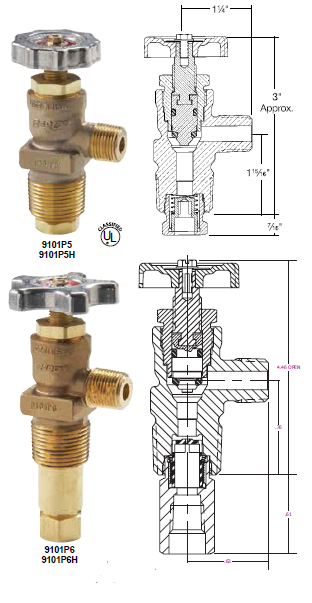

When installed for liquid withdrawal, the 9101P6 Series has provisions
for attachment of a liquid withdrawal tube. The 9101P5 Series must
be installed in containers that have provisions for a separate liquid withdrawal.
To insure proper functioning and maximum protection for integral
excess flow valves, these service valves should be fully opened and
backseated when in use.
Part Number |
Container Connection |
Service Connection |
Liquid Withdrawal Connection |
Closing Flow (LP-Gas) | Approximate Filling Rate Liquid Flow, GPM |
Accessories | |||||||
Vapor | Liquid (GPM) |
Pressure Drop Across Valve | ACME Check Connectors | ||||||||||
25 PSIG Inlet (SCFH) |
100 PSIG Inlet (SCFH) |
10 PSIG | 25 PSIG | 50 PSIG | 100 PSIG | Male | Female | Cap | |||||
9101P5 | ¾” M. NGT | ⅜” M. NPT | None | 430 | 950 | 1.5 | 5.0 | 7.6 | 0.7 | 14.9 | 7141M | 7141F | 7141M-40 or 7141FP |
9101P5H | 550 | 1050 | 2.6 | ||||||||||
9101P6 | ¼” NPT | 430 | 950 | 1.5 | 4.5 | 7.2 | 10.3 | 14.8 | |||||
9101P6H | 550 | 1050 | 2.6 |
Note: These valves incorporate an excess flow valve. Refer to L-500/Section F, for complete information regarding selection, operation and testing of excess flow valves.
