Service Valves for ASME and DOT Containers or Fuel Line Applications
Info
Designed for vapor withdrawal service on ASME and DOT containers
or in fuel line applications. Since none of these valves have an
integral pressure relief valve, they may only be used as an accessory
valve on containers that have an independent pressure relief valve
sufficient for that container’s capacity.
| Part Number | Bonnet Style | Container Connection |
Service Connection |
Fixed Liquid Level Vent Valve |
Approximate Filling Rate Liquid Flow, GPM | |||
| Pressure Drop Across Valve | ||||||||
| 10 PSIG | 25 PSIG | 50 PSIG | 100 PSIG | |||||

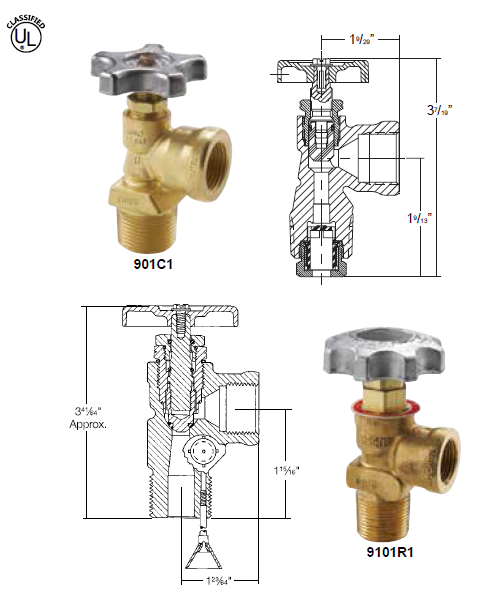

| 901C1 | Standard | ¾” M. NGT | F. POL CGA 510 |
No | 5.3 | 8.2 | 10.8 | 14.2 |
| 9101C1 | 8.8 | 12.4 | 15.8 | 21.7 | ||||

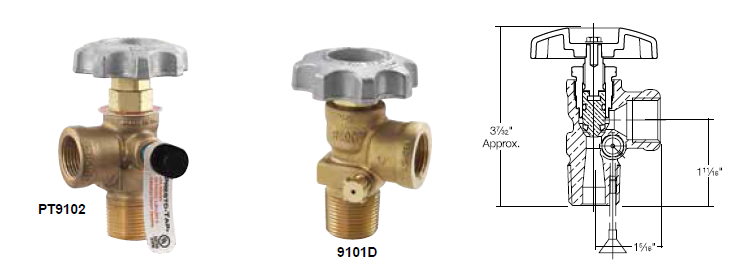

| 9101D11.1 | Yes | 8.6 | 12.7 | 16.3 | 22.3 | |||
| 9101D11.7 | ||||||||
| 9101R1 | MultiBonnet | No | 7.6 | 11.7 | 15.2 | 20.6 | ||
| 9101R11.1 | Yes | |||||||
| 9101R11.7 | ||||||||
| PT9102R1 | No | |||||||
| PT9102R11.1 | Yes | |||||||
| PT9102R11.7 | ||||||||
Since these valves have no integral pressure relief valve, they can be used on any container with an independant relief device sufficient for that tank’s capacity.
