Designed for installations with small capacity loads
up to 450 000 BTU per hour / 5,1 SCMH. With an overall length
of 6.5 or 7-inches / 165 or 178 mm for NPT or FPOL connections
respectively, this compact unit fi ts easily into confi ned spaces
and is ideal for ASME tanks used on small domestic loads.
Intermediate and outlet gauge taps facilitate easy system testing.
A 3/8-inch NPT vent allows easy installation of vent piping. Use
of a valve stem and lever provide stable regulation and excellent
durability. A large fabric-reinforced diaphragm provides accurate
regulation. The large orifi ce assists in minimizing freeze problems.
Stainless steel internal and corrosion resistant coatings provide

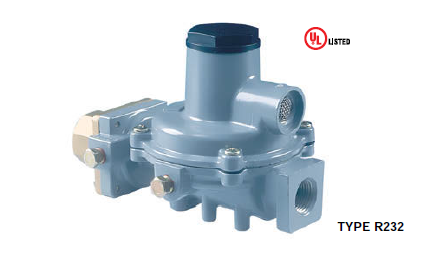

excellent corrosion resistance. The Type R232 also has the design
that provides a recommended replacement life of 20 years.
| TYPE NUMBER | CAPACITIES IN BTU per hour / SCMH PROPANE(1) |
INLET CONNECTION, INCHES |
OUTLET CONNECTION, INCHES |
OUTLET ADJUSTMENT RANGE, INCHES W.C. / mbar |
OUTLET PRESSURE SETTING, INCHES W.C. / mbar |
| R232-BBF | 450 000 / 5,1 | 1/4 FNPT | 1/2 FNPT | 9.5 to 13 / 24 to 32 |
11 / 27 |
| R232-BBFXA(2) | |||||
| R232-HBF | FPOL | ||||
| R232-HBFXA(2) | |||||
| R632-BCF | 750 000 / 8,4 | 1/4 FNPT | 1/2 FNPT | 9 to 13 / 22 to 32 |
|
| R632-BCFXA(2) | |||||
| R632-CFF | 850 000 / 9,6 | 3/4 FNPT | |||
| R632-CFFXA(2) | |||||
| R632-HCF | 750 000 / 8,4 | FPOL | 1/2 FNPT | ||
| R632-HCFXA(2) | |||||
| R632-JFF | 850 000 / 9,6 | 3/4 FNPT | |||
| R632-JFFXA(2) |
1. Based on 30 psig / 2,1 bar inlet pressure and 2-inches w.c. / 5 mbar droop.
2. First and Second-Stage spring case vents opposite gauge taps.
