Info

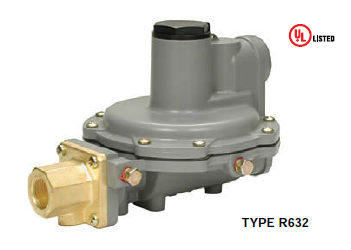

With a capacity of up to 850 000 BTU per hour / 9,6 SCMH, this regulator
recommended for on-site cylinder installations, mobile homes and
domestic installations, where separation of the First and Second-
Stage is not cost effective. This unit offers a POL inlet connection
for the easy drop-in replacement of Single-Stage regulators.
TYPE NUMBER | CAPACITIES IN BTU per hour / SCMH PROPANE(1) |
INLET CONNECTION, INCHES |
OUTLET CONNECTION, INCHES |
OUTLET ADJUSTMENT RANGE, INCHES W.C. / mbar |
OUTLET PRESSURE SETTING, INCHES W.C. / mbar |
R232-BBF | 450 000 / 5,1 | 1/4 FNPT | 1/2 FNPT | 9.5 to 13 / 24 to 32 |
11 / 27 |
R232-BBFXA(2) | |||||
R232-HBF | FPOL | ||||
R232-HBFXA(2) | |||||
R632-BCF | 750 000 / 8,4 | 1/4 FNPT | 1/2 FNPT | 9 to 13 / 22 to 32 |
|
R632-BCFXA(2) | |||||
R632-CFF | 850 000 / 9,6 | 3/4 FNPT | |||
R632-CFFXA(2) | |||||
R632-HCF | 750 000 / 8,4 | FPOL | 1/2 FNPT | ||
R632-HCFXA(2) | |||||
R632-JFF | 850 000 / 9,6 | 3/4 FNPT | |||
R632-JFFXA(2) |
1. Based on 30 psig / 2,1 bar inlet pressure and 2-inches w.c. / 5 mbar droop.
2. First and Second-Stage spring case vents opposite gauge taps.
