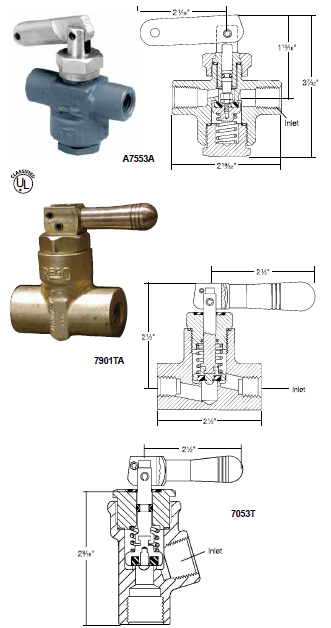

Quick-Acting Valves for Cylinder Charging Hoses
Info
Designed primarily for use on cylinder charging hoses to provide fast,
convenient shut-off and fast opening.
These valves must be installed so that flow through the valve is in
the opposite direction to that of a conventional globe valve. This
allows the inlet flow to assist in closing the valve, and even more
important, helps prevent the valve from being forced open by high
pump pressure.
| Part Number | Onlet Connection (F.NPT) | Outlet Connection (F.NPT) | Body Material | Flow At 1 PSIG (CV) Pressure Drop* (GPM/Propane) |
| 7901T | ¼” | ¼” | Brass | 1.95 |
| A7553A | Ductile Iron | |||
| 7901TA | ⅜” | ⅜” | Brass | |
| 7901TB | ½” | ¼” | ||
| 7901TC | ½” | |||
| 7053T |
* To obtain approximate flow at other than 1 PSIG pressure drop, multiply flow in table by square
root of pressure drop. Example: 7901T @ 9 PSIG = 1.95 x 9 = 5.85 GPM/propane. For NH3 flow,
multiply propane flow by .90.
