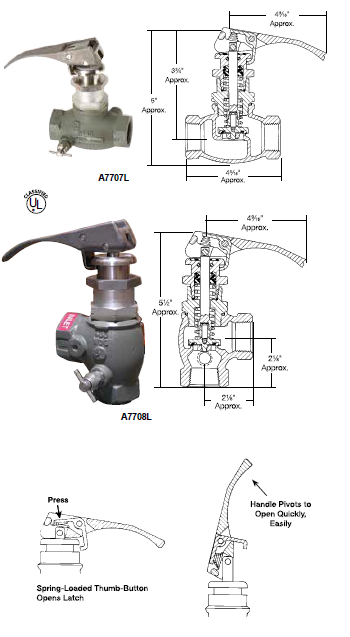

Quick-Acting Hose-End Valves for Bobtail Delivery Trucks and Dispensing
Stations A7707L and A7708L
Info
Designed especially for safe operator handling of LP-Gas in bobtail
delivery truck, dispensing systems and anhydrous ammonia nurse
tank service.
These valves provide instant, full-on flow at the flip of the handle
and provide instant positive shut-off with a handle lock for added
protection.
| Part Number | Body Design |
Inlet & Outlet Connection (F.NPT) | Locking Handle | Flow at 1 PSIG Pressure Drop (Cv) (GPM/Propane)** | Accessories | ||
| Filling Connectors** | |||||||
| Extended | Compact | ||||||
| Steel | Brass | Steel | |||||
| A7707L | Globe | 1" | Yes | 18.0 | A7575L4 | 3175A | A3175A |
| A7708L | Angle | 22.0 | |||||
* To obtain approximate flow at other than 1 PSIG pressure drop, multiply flow in table by square root of pressure drop.
Example: A7708L @ 9 PSIG = 22.0 x 9 = 66.0 GPM/propane. For NH3 flow, multiply propane flow by .90.
* * See appropriate catalog section for additional information.
