Cylinder Valve for Propylene Service
Info
Designed for vapor withdrawal from and protection of DOT cylinders
up to 100 lbs. propylene capacity with pressure ratings such as
4B-260, 4BA-260, and 4BW-260 cylinders.
| Part Number | Container Connection |
Service Connection | Fixed Liquid Level Vent Valve Style |
Dip Tube Length* | Pressure Relief Valve Setting |
For use in Cylinders w/ Propylene Capacity up to: |

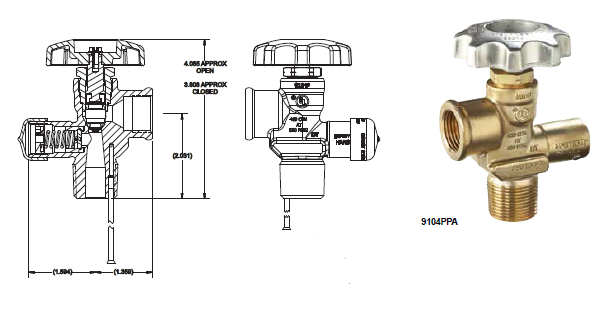

| 9104PPA | ¾” M.NPT | F.POL - (CGA 510) | N/A | N/A |
435 PSIG | 100lbs |

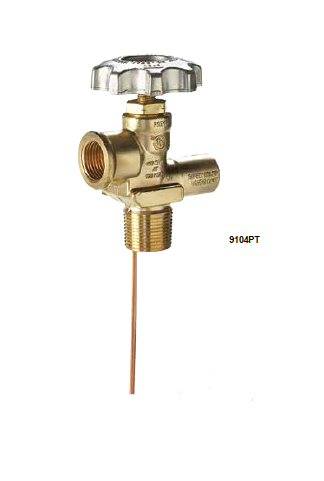

| *9104PT10.1 | Knurled |
10.7" | ||||
| *9104PT10.7 | 10.7” |
* Valve can be ordered with other dip tube lengths. Specify required length when ordering. X = diptube size
